Industrial ozone generator

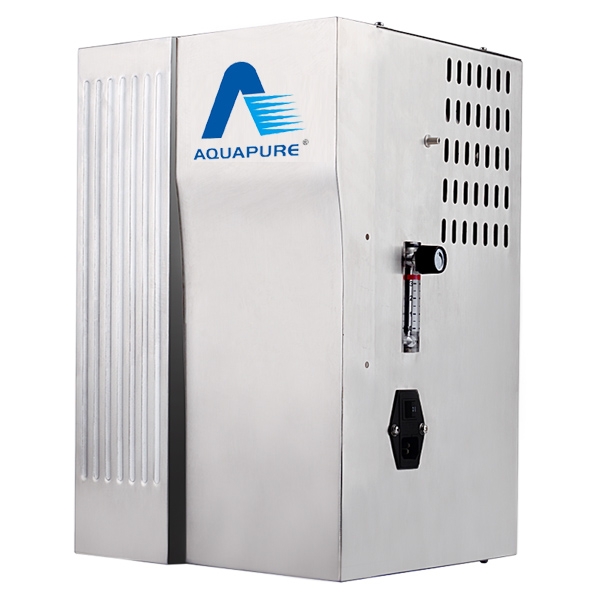

10g Ozone Machine built-in Oxygen PSA

This Ozone Machine has been built in a medical standard of oxygen PSA inside. It is the smallest products in size and weight all over the world, when comparing to other ozone generator machines in markets.  It generates pure ozone in high ozone concentrations, ideal for industry or hospital sanitizations.  You can save lots of cost because of their small size and high performance.

Fast contact

  • 10g Ozone Machine built-in Oxygen PSA

    Brief Introduction:
    This Ozone Machine has been built in a medical standard of oxygen PSA inside. It is the smallest products in size and weight all over the world, when comparing to other ozone generator machines in markets.  It generates pure ozone in high ozone concentrations, ideal for industry or hospital sanitizations.

    Key Features:
    1. Makes Pure Ozone
    2 .High Ozone Concentrations

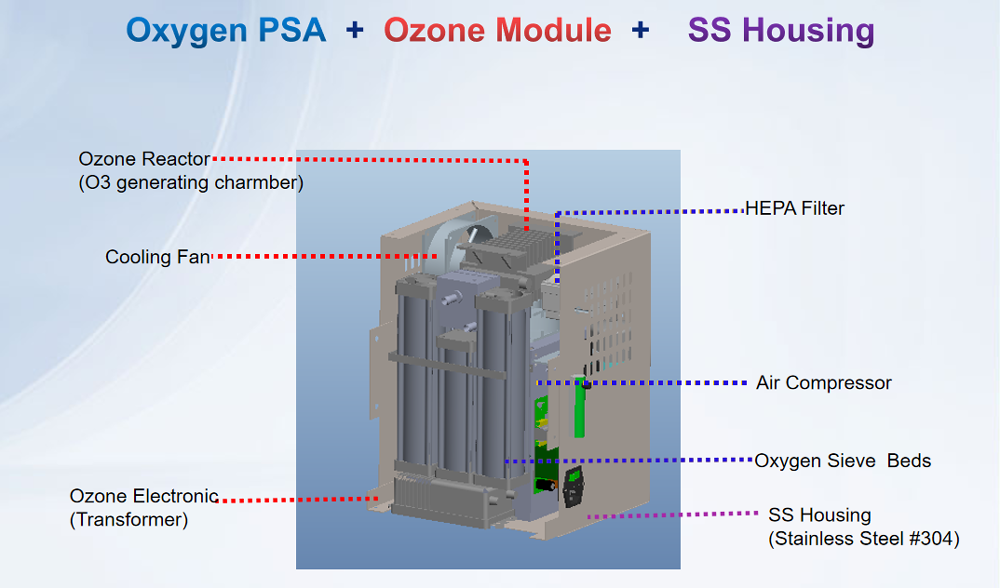

    3. All-In-One design: Built-in Oxygen PSA in same metal housing
    4. Easy to Use

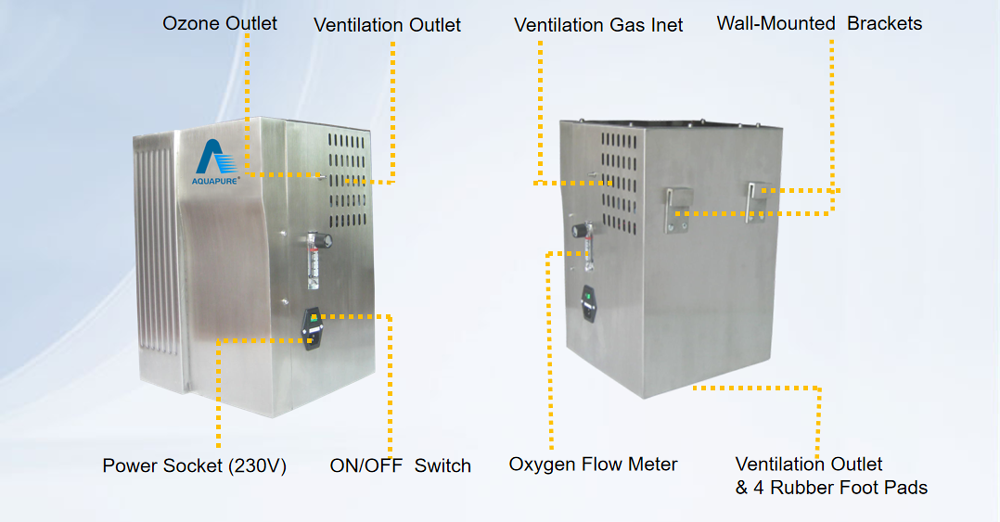

    5. Wall-mounted available
    6. Stainless Steel #304 housing

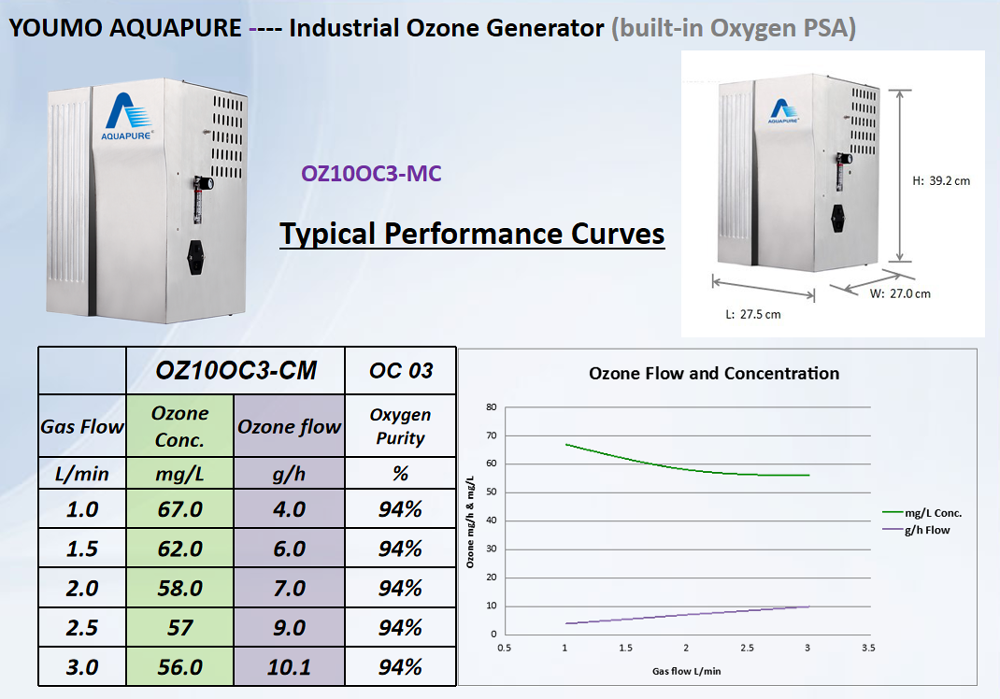

    Product Specification:

    Ozone Output 10 g/h. Adjustable 4.0~10.0 g/h
    Ozone concentration > 55 mg/L  at 3.0 L/min gas flow
    Gas Flow Adjustable 0.5 ~3.0 L/min
    Oxygen Purity > 90 %
    Output connections OD  5.0 mm
    Continuous operation 24 h/day available
    Cooling system Air cooling, built-in 2 x 80 CFM  fans
    Ozone generating method Corona discharge
    Input voltage 220 V AC  50 Hz (60 Hz optional)
    Rated power < 330  W
    Size L x W x H 275 x 270 x 392 mm
    Product  Weight 16.7kgs/pc
    Shipment Package 23kg/unit with wood pallet








    Applications:


    This machine is ideal for making ozone oil.
    It takes a few weeks to make the ozone oil, so it requests the ozone generator machine to work continuously for weeks.  This machine is great since it includes a medical standard of oxygen PSA inside, which delivers high purity of oxygen to the ozone module. You can get pure ozone in high ozone concentrations from this machine, which is wonderful for your ozonated oils.

    This machine is good for private swimming pools ( <=80 m3 ).
    This ozone generator machine is small size and weight, but can make 4-10g/h ozone in high ozone concentration of 50-70 mg/L. The pool water will be circulated in 4 hours for each time. Just introduce the ozone gas to the water flow via a small venturi, the water will be dinfected well. Lost of cost can be saved. What‘s more important, it is a lot more healthy for skins.

    This machine is great for commercial laundry and many other appliations too. Please contact us for more informations if in need.
